Vacuum Pump Spares for Research & Development
Vacuum pump spares for UK universities, research institutions, and core analytical facilities — Edwards nEXT and nXDS, Pfeiffer HiPace and Duo, Leybold TURBOVAC and TRIVAC, Welch DuoSeal, plus Vacuubrand chemistry diaphragm pumps. Next-day UK delivery with batch traceability for ISO 17025 records.

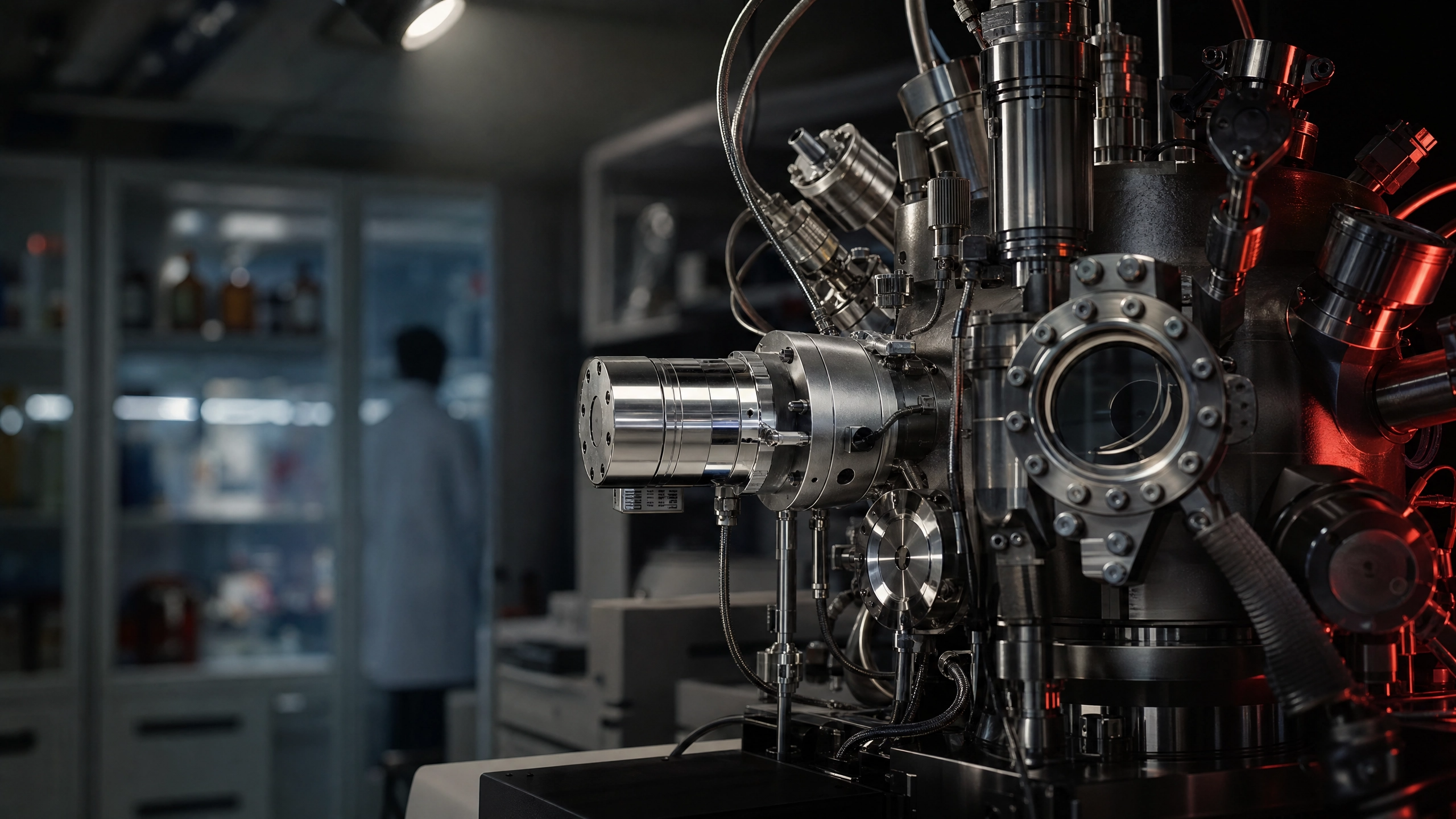

Vacuum pumps are used in research and development for mass spectrometry, electron microscopy (SEM/TEM/FIB), surface-science and UHV systems, particle accelerators and beamlines, thin-film deposition, cryogenics and superconducting magnets, and freeze-drying and rotary evaporation in chemistry labs.
Where vacuum is used in R&D / Laboratory
We supply spare parts to support every vacuum-based process in this sector — from frontline production equipment to laboratory and quality-assurance instrumentation.
Mass spectrometers (LC-MS, GC-MS, ICP-MS, MALDI, TOF)
Turbomolecular pumps maintain ion-source and analyser vacuum; small split-flow turbos on differential-pumping stages.
Scanning and transmission electron microscopes (SEM, TEM, FIB-SEM)
Turbomolecular and ion getter pumps for column vacuum down to 10⁻⁹ mbar.
Surface-science UHV chambers (XPS, AES, STM, ARPES)
Down to <1×10⁻¹⁰ mbar with ion pumps and titanium sublimation, including bake-out cycles.
Particle accelerators, synchrotrons, and neutron sources
Diamond Light Source, ISIS — large UHV beamlines with sectorised pumping.
Thin-film research (sputtering, evaporation, MBE, ALD)
Lab-scale deposition tools with dedicated turbo and roughing pumps per chamber.
Cryostats, dilution refrigerators, and superconducting magnet vacuum jackets
Quantum-computing R&D — high vacuum on outer vacuum chambers.
Rotary evaporators, vacuum ovens, Schlenk lines, and gloveboxes
Synthetic chemistry — chemistry diaphragm pumps as standard.
Lab-scale lyophilisers
Biological-sample freeze-drying for protein crystallography and biotech.
Which pump types are used and why
Different applications in r&d / laboratory drive different pump-technology choices. We support the full breadth of pump types installed in this sector.
Brand Affinities
- •Pfeiffer dominant in mass-spec OEM specifications (Thermo, Waters, Agilent MS instruments)
- •Edwards strong in UK universities (nEXT turbo, nXDS scroll widely standardised)
- •Leybold on accelerator and research-facility scale
- •Agilent on its own GC-MS and helium leak detectors
- •Vacuubrand on chemistry benches and rotovaps
- •Welch DuoSeal on legacy lyophilisers and freeze-drying installations
Turbomolecular pumps
Pfeiffer HiPace (including HiPace 10 Neo — smallest on market), Edwards nEXT, Leybold TURBOVAC i/iX, Agilent TwisTorr, Shimadzu — for high-vacuum analytical instruments.
Oil-free scroll or diaphragm backing pumps
Edwards nXDS, Agilent IDP, Vacuubrand, Pfeiffer MVP — clean labs avoid hydrocarbon backstreaming onto samples.
Ion getter and titanium sublimation pumps
UHV and surface-science chambers below 10⁻¹⁰ mbar.
Rotary vane (legacy and lyophiliser duty)
Edwards RV, Leybold TRIVAC, Pfeiffer DUO — on lyophilisers and older mass-spec rigs.
Cryopumps and helium cryostats
MBE and large UHV systems requiring very high pumping speeds for water and condensables.
The cost of vacuum downtime in r&d / laboratory
University and research-instrument downtime delays publications, grant deliverables, and PhD timelines. Core facilities (mass-spec, electron-microscopy suites) typically charge £50–£200/hour to internal and external users, so any outage is direct revenue loss plus rebooking churn. Synchrotron and neutron beam-time slots are scheduled months ahead and cannot be re-run easily. Most labs have no on-site engineer, so next-day spares plus remote support are essential.
Turbo bearing wear (especially hybrid ceramic-bearing pumps subjected to power cuts and rapid vents)
Turbo bearing kits and lubricant cartridges
Tip seal contamination on scrolls from solvent vapour
Tip seal kits (Edwards nXDS, Agilent IDP)
Diaphragm rupture on chemistry pumps from chlorinated solvents
PTFE diaphragm sets (Vacuubrand, Welch DryFast)
Oil migration from older rotary-vane backed mass specs causing background contamination
Mist filter elements, oil change, and inlet trap service
Controller PSU failure on turbo electronics
Replacement controller boards or exchange units
Standards and frameworks our supply must support
- ISO 17025 — laboratory accreditation
- Good Laboratory Practice (GLP)
- University radiation and biosafety frameworks
- UKRI and Wellcome procurement rules
- COSHH for solvent handling
- DSEAR / ATEX in solvent labs
- Export control on certain UHV / accelerator components
Most-installed brands in this sector
Common questions about vacuum spares for r&d / laboratory
Need spares for r&d / laboratory?
Tell us your pump model, part number, or just describe the symptom — we'll get back within 24 hours on working days with a quote and confirmed lead time.
