Vacuum Pump Spares for Vacuum Forming
Vacuum pump spares for vacuum forming and thermoforming plants — packaging tray forming, automotive trim, point-of-sale displays, signage, refrigerator and bath liners, and composite vacuum bagging. Busch R5, Becker, Elmo Rietschle, and central vacuum spares in UK stock.
Vacuum forming is a thermoforming process in which a heated plastic sheet is drawn against a mould by vacuum, producing packaging trays, automotive interior trim, signage, point-of-sale displays, refrigerator liners, and large-scale composite components. The vacuum pump rapidly evacuates the cavity between the heated sheet and the mould to draw the plastic into the mould geometry.
Where vacuum is used in Vacuum Forming
We supply spare parts to support every vacuum-based process in this sector — from frontline production equipment to laboratory and quality-assurance instrumentation.
Plastic vacuum forming
Thermoformed trays, blister packs, clamshells, drinking cups, refrigerator and freezer liners.
Automotive interior trim
Dashboards, door cards, headliners, bumper components, wheel-arch liners formed under vacuum.
Point-of-sale and signage
Vacuum-formed retail displays, illuminated signage faces, and three-dimensional brand graphics.
Bath and shower-tray production
Large-scale vacuum forming of acrylic and ABS sanitaryware.

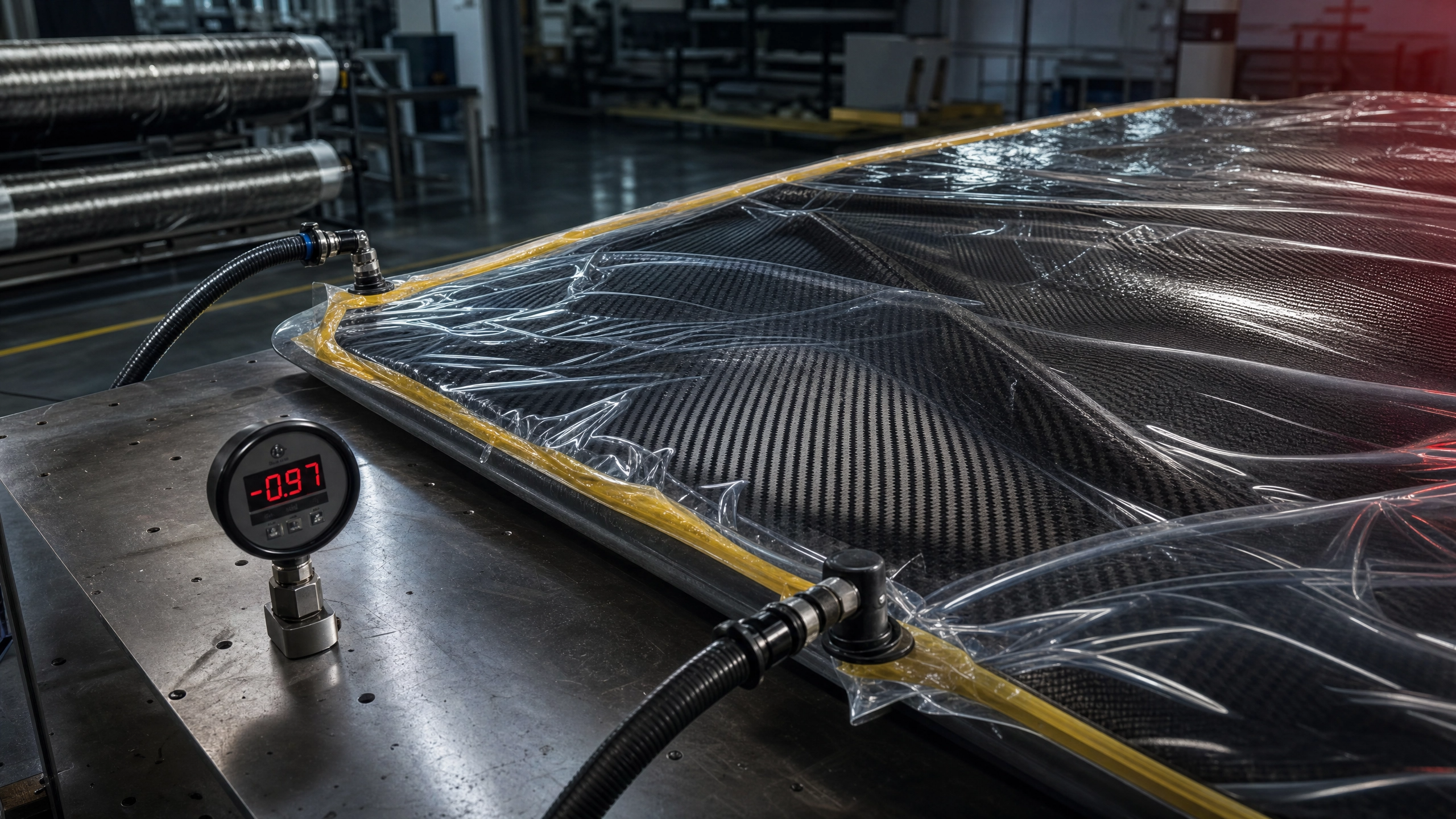

Composite vacuum bagging
CFRP and GFRP layup compaction — vacuum pulls atmospheric pressure onto the laminate, removing voids before cure.
Resin transfer moulding (RTM)
Closed-mould composite production — vacuum-assisted resin infusion for void-free large parts.
Aerospace composite layup
Out-of-autoclave (OOA) CFRP processing of structural aerospace parts.
Marine and wind-turbine composite forming
Large-scale vacuum-infused composite parts — boat hulls, wind-turbine blades.
Which pump types are used and why
Different applications in vacuum forming drive different pump-technology choices. We support the full breadth of pump types installed in this sector.
Brand Affinities
- •Busch R5 RA — dominant on UK thermoforming plants
- •Becker U-series and VTLF — dry-vane variants on clean composite duty
- •Elmo Rietschle V-VC oil-lubricated and C-VLR claw on central systems
- •Edwards GV / GXS on energy-efficient central vacuum installations
- •Specialist composite-layup pumps from Edwards and Leybold on aerospace OOA
Oil-flooded rotary vane (Busch R5, Becker U)
The workhorse for thermoforming — handles the inlet dust load from plastic forming and pulls the vacuum level needed in short cycles.
Dry rotary vane and claw pumps
Clean composite layup, automotive interior trim where oil mist would contaminate finish.
Central vacuum systems
Multi-station thermoforming plants — central rotary vane or dry screw plant serving multiple thermoformers on a common ring main.
Vacuum receivers and side-channel blowers
Demand smoothing — receivers hold a vacuum reserve for the burst draw at the start of each form cycle.
The cost of vacuum downtime in vacuum forming
Thermoforming and composite-forming plants typically run multi-shift or 24/7. A vacuum failure on a single thermoformer stops the cell — typical UK plant throughput loss is £3k–£15k per hour per machine, multiplied by however many machines share a failed central system. Aerospace composite layup is particularly time-critical — once a CFRP layup is started, the vacuum must hold continuously through cure or the laminate is scrapped (multi-thousand-pound part loss).
Inlet filter clogging from plastic dust ingestion
Inlet filter cartridges and housings
Carbon vane wear from particulate ingestion and dry running
Vane sets
Pump body contamination from melted plastic ingestion (overheating)
Full strip-clean service or pump exchange
High-cycle wear on inlet check valves
Inlet check valve assemblies
Oil contamination from resin/solvent vapour on composite duty
Oil change, oil filter, exhaust mist filter
Standards and frameworks our supply must support
- ISO 9001 — quality management
- Machinery Directive 2006/42/EC (UKCA)
- AS9100 and NADCAP for aerospace composite layup
- IATF 16949 for automotive interior trim production
- ATEX where solvent-handling is involved (resin infusion)
- REACH / RoHS on plastic and resin chemistries
Most-installed brands in this sector
Common questions about vacuum spares for vacuum forming
Need spares for vacuum forming?
Tell us your pump model, part number, or just describe the symptom — we'll get back within 24 hours on working days with a quote and confirmed lead time.
